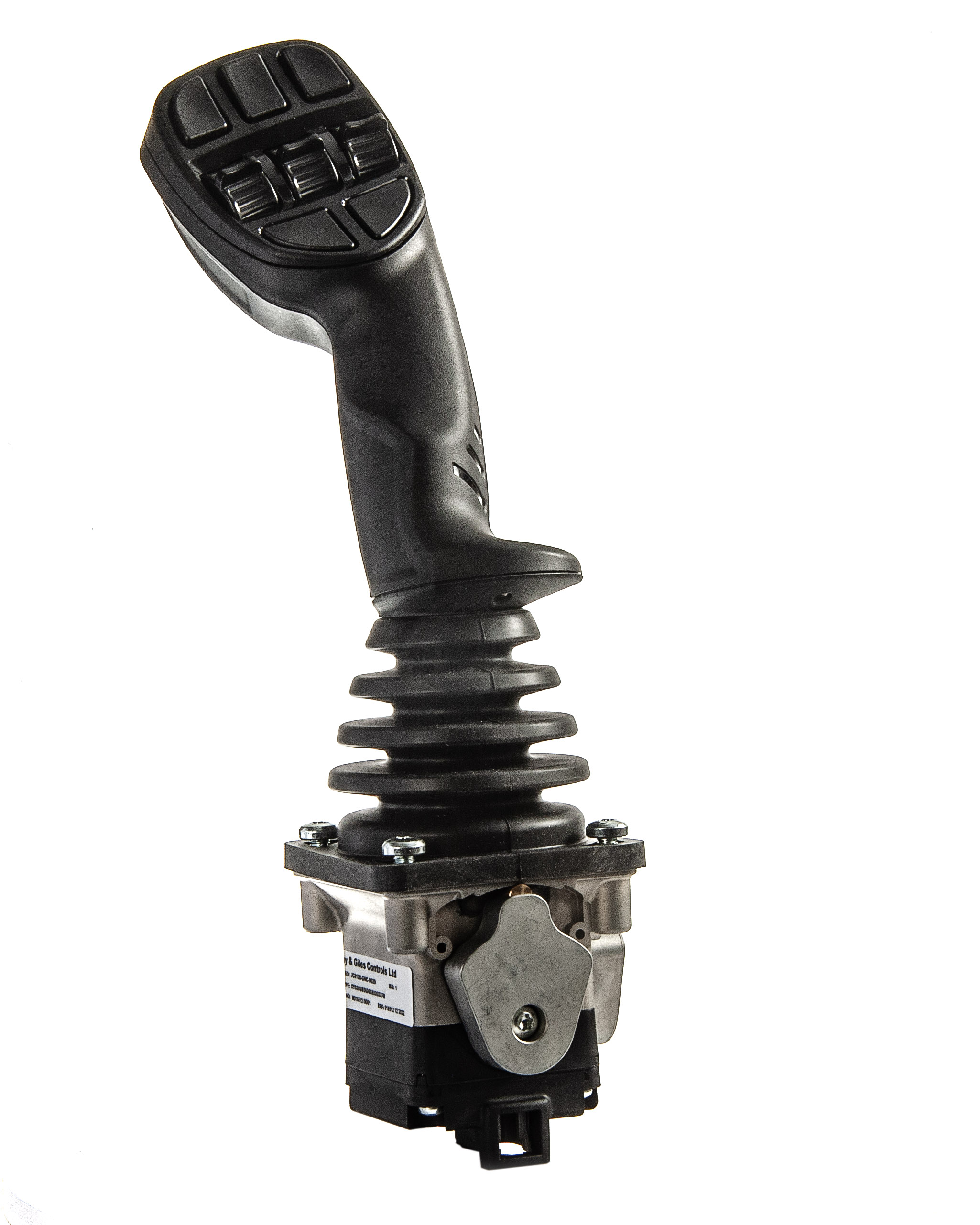

JC8100 - Multi-Axis Joystick

The JC8100 offers high mechanical strength for very heavy-duty applications and features a center detent that provides guaranteed return-to-center, as well as a positive feel to the operator, throughout 5 million cycles.

  • Extremely robust design for arduous applications
  • Integrated sealed connectors
  • Center detent for enhanced return-to-center performance
  • Under panel depth has been minimized to 83mm
  • Pivot-point position minimizes grip cable flex
  • Rated for 5 million cycles
  • Hall-effect sensor technology
  • CAN output options – J1939 and CANopen
  • Dual Analogue outputs with sense options
  • Electronics sealed to IP66 and IP69k
  • Can be supplied as ‘base-only’ for custom grip fitting
  • Multiple generic grip options with additional axes of control

More Details

Overview

General


JC8100 - Multi-Axis Joystick

While maintaining an overall minimum under-panel depth of the joystick body, the shaft pivot-point position has been designed to be as low as possible so as to ensure a high strength capability in the small body space envelope. This reduction in angular deflection reduces wear on base-to-grip wiring, so enhancing overall reliability.

Hall-effect sensing eliminates contact wear and provides safety functionality via dual analogue outputs per axis or CAN. Electronic robustness is assured with sealing of the internal PCB to a rating of IP66 and IP69k. Simplified connector detailing through the use of industry standard sealed connectors to ensure product integrity over the product lifetime.

A choice of multi-function grips are available, including grips with up to 4 axis of additional proportional control, plus the option of ‘base-only’ enabling custom grips to be fitted.
